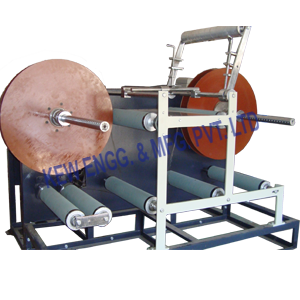

Doctoring Film Strip Winding Rewinding Machine

Doctoring Film Strip Winding Rewinding Machine

Doctoring Film Strip Winding Rewinding Machine

We specialising manufacturing Doctoring Film Strip Winding Rewinding Machine. Specially built for film strip winding with 100% correction doctoring winding.

    1. Cantilever design-balancing body for easy loading and unloading of parent / rewound reel. Movable unwind stage for Edge guiding System (Hydraulic Web Aligner).
    2. Mechanical 1.5 / 2.5 Kg. Optional Magnetic powder brake with tension controller & Torque control potentiometer. Provision for incorporating Inkjet Printing System with Hot air ink drying.
    3. The Model is specially designed for correcting badly wounded reels for inspection & doctoring operation.
    4. It is great substitute to online coding / batching operation
    5. Convenient height for operation
    6. Compact Design
    7. Variable speed drive
    8. Double drive

  • Technical Specification

     Web width

     100 to 1500 MM

     Max. Weight of Unwind

     100 to 1000 KG
      (Different models for different weight)

     Max. Parent Reel Dia.

     400 MM

     Max. Rewind Reel Dia.

     400 MM

     Rewind Core Dia.

     76 MM

     Motor

     2 HP AC / DC Motor (3, 5 HP also available on suitable model)

     Maximum Designed Speed

     100 to 150 Mtrs / Min
