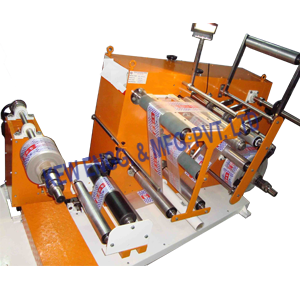

Inspection Winding Rewinding Machine

Inspection Winding Rewinding Machine

Inspection Winding Rewinding Machine

We are Manufacturer and exporting of Winding Rewinding Machine, Doctoring Rewinding Machine, Inspection Winding Rewinding Machine for quality control of printed and converted substrates. The Machine also performs the function of Batch Printing, Inspection System, Label Counting and many more. Our Inspection Rewinding Machine used majorly for checking of bad printed materials on Rotogravure Printing Machine, Flexo Printing Machine , Batch Printing Machine on Doctoring Rewinding Machine, etc. Inspection Rewinding Machine with advanced feature like, adjustable slitting assembly and many more per client’s requirement.

    1. Cantilever design-balancing body for easy loading and unloading of parent / rewound reel. Movable unwind stage for Edge guiding System (Hydraulic Web Aligner).
    2. Mechanical 1.5 / 2.5 Kg. Optional Magnetic powder brake with tension controller & Torque control potentiometer. Provision for incorporating Inkjet Printing System with Hot air ink drying.
    3. The Model is specially designed for correcting badly wounded reels for inspection & doctoring operation.
    4. It is great substitute to online coding / batching operation
    5. Convenient height for operation
    6. Compact Design
    7. Variable speed drive
    8. Double drive

  • Technical Specification

     Web width

     100 to 1500 MM

     Max. Weight of Unwind

     100 to 1000 KG
      (Different models for different weight)

     Max. Parent Reel Dia.

     400 MM

     Max. Rewind Reel Dia.

     400 MM

     Rewind Core Dia.

     76 MM

     Motor

     2 HP AC / DC Motor (3, 5 HP also available on suitable model)

     Maximum Designed Speed

     100 to 150 Mtrs / Min
