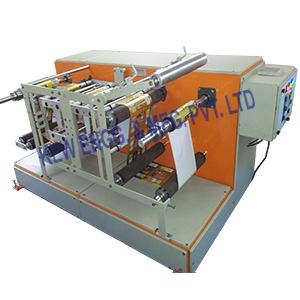

Winding Rewinding Machine With Thermal Transfer Overprinter TTO

Specialised in manufacturing Winding Rewinding Machine With Thermal Transfer Overprinter TTO. It is with extra quality toughness with high proficiency and long administration life in compact design

Standard Features
Technical Specification
Quick Inquiry

1. Cantilever design-balancing body for easy loading and unloading of parent / rewound reel. Movable unwind stage for Edge guiding System (Hydraulic Web Aligner).
2. Mechanical 1.5 / 2.5 Kg. Optional Magnetic powder brake with tension controller & Torque control potentiometer. Provision for incorporating Inkjet Printing System with Hot air ink drying.
3. The Model is specially designed for correcting badly wounded reels for inspection & doctoring operation.
4. It is great substitute to online coding / batching operation
5. Convenient height for operation
6. Compact Design
7. Variable speed drive
8. Double drive

Technical Specification
Web width	100 to 1500 MM
Max. Weight of Unwind	100 to 1000 KG (Different models for different weight)
Max. Parent Reel Dia.	400 MM
Max. Rewind Reel Dia.	400 MM
Rewind Core Dia.	76 MM
Motor	2 HP AC / DC Motor (3, 5 HP also available on suitable model)
Maximum Designed Speed	100 to 150 Mtrs / Min
